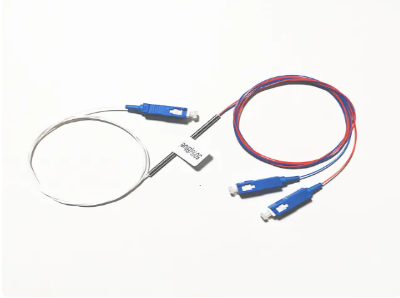

1X2 1550nm Mini Coupler

Ratio(%)

Operating Band (nm)

Customer PN

Vendor PN

Ordering Description

Size

(mm)

01/99

1550±20

2.4x25

02/98

1550±20

2.4x30

05/95

1550±20

2.4x30

0.5/99.5

1550±20

2.4x30

Configuration

Unit

Single Mode Standard Coupler(SSC)

Type

Operating Bandwidth

nm

1550±40nm

1550±20nm

0.5/99.5

/

/

0.20

21～27

Max Insertion Loss

1/99

%

0.25

19～21

0.20

19～21

2/98

%

0.30

16～18

0.25

16～18

5/95

%

0.45

12～14

0.40

12～14

10/90

%

0.70

9～11

0.65

9～11

50/50

%

3.45

3.45

3.40

3.40

0.5/99.5

/

/

0.10

0.25

Max Polarization Dependent Loss

1/99

dB

0.10

0.15

0.10

0.15

2/98

0.10

0.15

0.10

0.15

5/95

0.10

0.15

0.10

0.15

10/90

0.12

0.15

0.12

0.15

50/50

0.15

0.15

0.15

0.15

Max Wavelength  Dependent Loss

0.5/99.5

/

/

0.10

0.80

1/99

dB

0.15

0.30

0.15

0.20

2/98

0.15

0.30

0.15

0.20

5/95

0.15

0.30

0.15

0.20

10/90

0.20

0.30

0.20

0.20

50/50

0.30

0.30

0.20

0.20

Return Loss

dB

≥50.00

Directivity

dB

≥55.00

Operating Temperature

Deg

-5～+75

Storage Temperature

Deg

-40～+85

Fiber Length

m

1.00±0.10

Fiber Type

Corning SMF 28 Ultra 200kpsi

Fiber Diameter

um

250

Package

mm

2.4×30、3.0×30

XXXX

X

X

XX

X

X

X

X

SSC:

Single Mode

Standard Coupler

Configuration

Operating

Wavelength

Coupler Ratio

Fiber diameter

Package

Fiber Type

Connector

1:1×2

1: 2.4×25

1:SMF-28® Ultra

1:none

2:2×2

1:980

50:50/50

1:250um

2: 2.4×30

2:LC/UPC

2:1550

45:45/55

3: 3.0×30

2:ofs-16

3:LC/APC

……

3:ofs-20

4:SC/UPC

01:1/99

4:HI 1060

5:SC/APC

5:HI 1060Flex

6:FC/UPC

6:other

7:FC/APC

8:other
