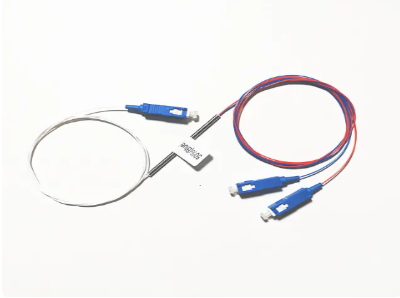

1X2 980nm Mini Coupler

Fused Optical Coupler 熔融拉锥单模耦合器

Model Number：1X2 980nm Mini Coupler
Views：77
：Click the picture to enlarge display

Overview
Specifications
Online Inquiry

Table 1: Product Identification

Ratio	CustomerPN	Vendor PN	Ordering Description
50/50
40/60
20/80

Table 2: Optical Specification

Configuration		Unit
Type			Single Mode Standard Coupler(SSC)
Operating Bandwidth		nm	980±20nm
Max Insertion Loss	20/80	%	1.30	7.7
	40/60	%	2.40	4.3
	50/50	%	3.45	3.45
Max Polarization Dependent Loss	20/80	dB	0.10	0.10
	40/60		0.10	0.10
	50/50		0.10	0.10
Max Wavelength Dependent Loss	20/80	dB	0.20	0.30
	40/60		0.30	0.30
	50/50		0.30	0.30
Return Loss		dB	≥50.00
Directivity		dB	≥55.00
Operating Temperature		Deg	-5～+75
Storage Temperature		Deg	-40～+85
Fiber Length		m	1.00±0.10
Fiber Type			OFS 980-16
Fiber Diameter		um	250
Package		mm	2.4×25

NOTE :The parameters do not include connector, connector IL is 0.30dB

3、 Apperance Drawing 示意图

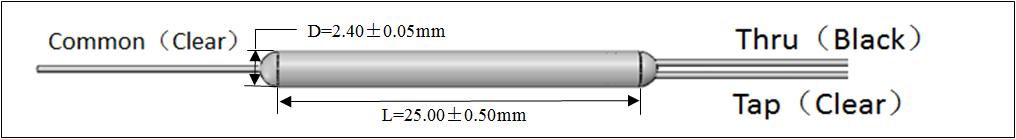

Fig 1：Apperance Drawing

4、Product Ordering Guide产品订购指南

XXXX	X	X	XX	X	X	X	X
SSC: Single Mode Standard Coupler	Configuration	Operating Wavelength	Coupler Ratio	Fiber diameter	Package	Fiber Type	Connector
	1:1×2	Operating Wavelength	Coupler Ratio	Fiber diameter	1: 2.4×25	1:SMF-28^@ Ultra	1:none
	2:2×2	1:0980	50:50/50	1:250um	2: 2.4×30	2:ofs-16	2:LC/UPC
	2:2×2		50:50/50	1:250um	2: 2.4×30	3:ofs-20	2:LC/UPC
			40:40/60		3: 3.0×30	4:HI1060	3:LC/APC
			……			5:HI1060 Flex	4:SC/UPC
			10:10/90				5:SC/APC
							6:FC/UPC
							7:FC/APC
							8:other
