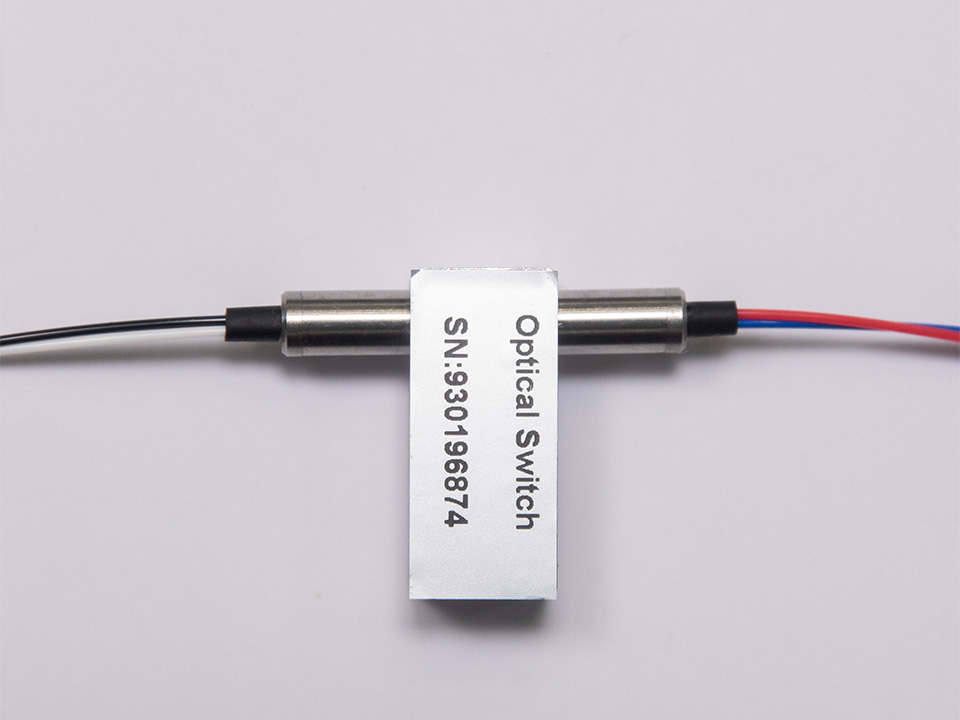

Specifications


			|
					Parameters
				 |
					Value
				 |
					Unit
				 |

			|
					Operation Wavelength
				 |
					1260~1620

					850/1310/1550
				 |
					nm
				 |

			|
					Insertion Loss
				 |
					Type:0.5,Max:0.8
				 |
					dB
				 |

			|
					Polarization Dependent Loss
				 |
					<0.2
				 |
					dB
				 |

			|
					Repeatability
				 |
					<±0.02
				 |
					dB
				 |

			|
					Return Loss
				 |
					>50
				 |
					dB
				 |

			|
					Cross talk
				 |
					>50
				 |
					dB
				 |

			|
					Switch time
				 |
					<10
				 |
					ms
				 |

			|
					Switch Type
				 |
					Latching or Non-latching
				 |

				 |

			|
					Fiber Type
				 |
					Corning SMF-28
				 |

				 |

			|
					Operation Temperature
				 |
					-5~70
				 |
					℃
				 |

			|
					Storage Temperature
				 |
					-40~85
				 |
					(℃)
				 |

			|
					Switch Power Voltage
				 |
					+5
				 |

				 |

			|
					Switch Driving Current at 5v
				 |
					<300
				 |

				 |

			|
					Dimensions
				 |
					L27xW12xH8.2
				 |
					mm
				 |

Notes:
1.  Specified without connectors.
2.  Add an additional 0.2dB loss per connector.

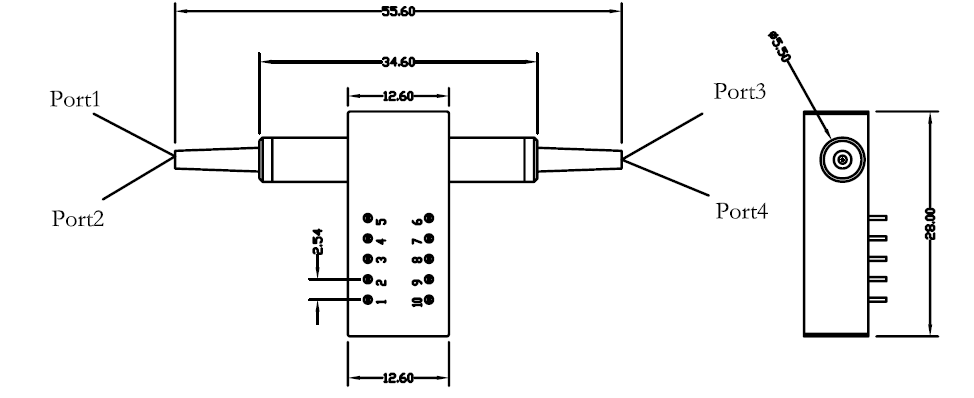

Mechanical Dimensions
Standard





	Electrical Connector Configurations


			|
					Non-Latching Type
				 |

				 |

				 |

				 |

				 |

				 |

			|


					Optical Path
				 |


					Electric Drive
				 |


					Status Sensor
				 |

			|
					Pin 5
				 |
					Pin 6
				 |
					Pin 1
				 |
					Pin 10
				 |
					Pin2-3
				 |
					Pin3-4
				 |
					Pin7-8
				 |
					Pin8-9
				 |

			|

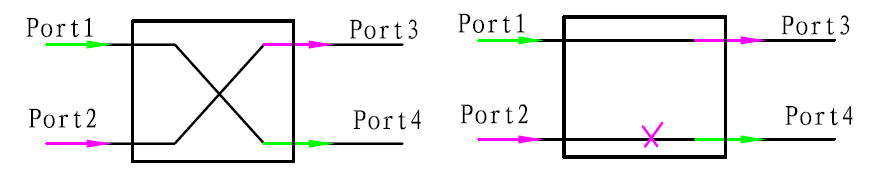

					Port1→Port4,Port2→Port3
				 |
					GND
				 |
					+5VDC
				 |
					N/A
				 |
					N/A
				 |
					close
				 |
					open
				 |
					open
				 |
					close
				 |

			|
					Port1→Port3,
				 |
					No power
				 |
					N/A
				 |
					N/A
				 |
					open
				 |
					close
				 |
					close
				 |
					open
				 |

	Latching Type


			|


					Optical Path
				 |


					Electric Drive
				 |


					Status Sensor
				 |

			|
					Pin 1
				 |
					Pin 5
				 |
					Pin 10
				 |
					Pin 6
				 |
					Pin2-3
				 |
					Pin3-4
				 |
					Pin7-8
				 |
					Pin8-9
				 |

			|
					Port1→Port4,Port2→Port3
				 |
					GND
				 |
					+5V Pulse
				 |

				 |

				 |
					close
				 |
					open
				 |
					open
				 |
					close
				 |

			|
					Port1→Port3,
				 |

				 |

				 |
					GND
				 |
					+5VPulse
				 |
					open
				 |
					close
				 |
					close
				 |
					open
				 |

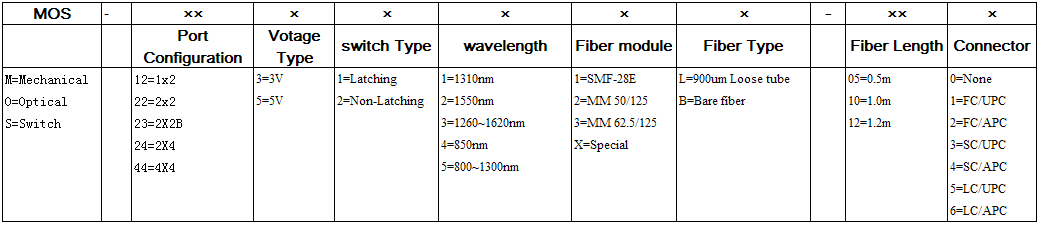

Ordering information
