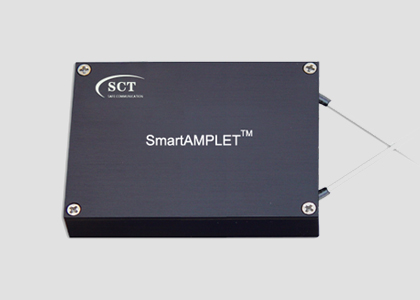

1021 MSA Size EDFA

Feature Description

1021

1021T

POP1021C

Number of Amplifier

1

2

1

Pump Laser

Uncooled pump

Uncooled pump

Cooled pump

Footprint

90 x 70 x 15 (mm)

Maximum Optical Output

Up to 22dBm

Up to 20dBm for each

Up to 24dBm

Communication

RS232 LVTTL level (3.3V)

Power Supply

3.3V (5V Optional)

Control Modes

AGC, APC or ACC

Gain Flatness

Optional for multi-channel application with GFF

Firmware Field Upgrade

Remote, hitless

Operating Temperature

-10 to 65℃ ambient (70℃ Case)

Electrical Connector

ZLTMM-115-73-S-D by Samtec

Parameter

Min.

Typ.

Max.

Unit

Wavelength Range(Custom)

C-Band

1528

1565

nm

L-Band

1570

1605

nm

Maximum Output Power(Custom)

1021

22

dBm

1021T

20

dBm

1021C

24

dBm

Small Signal Gain at -25dBm Input

25

30

dB

Gain Flatness at Specified Gain( multi-channel EDFA)

±0.5

±1.0

dB

Noise Figure, for G > 20dB

5.0

5.5

dB

Optical Return Loss (at Input and Output Ports)

40

dB

Polarization Mode Dispersion

0.3

0.5

ps

Polarization Dependent Gain

±0.2

±0.5

dB

Signal Input & Output Detection Dynamic Range

25

30

dB

Signal Detection Accuracy (Within the Range)

±0.3

±0.5

dB

Transient Overshoot (15 dB Drop)

0.5

1

dB

Transient Settling Time

1

ms

Electrical Connector

30 PIN (ZLTMM-115-73-S-D)

Dimensions (H x W x D)

90 x 70 x 15 (mm)

Heatsink(Option)

90 x 70 x 4.5 (mm)

1021X

—

XX

X

X

XX

—

XX

X

Type

Typical Gain

Type

Max Ouput Power

Optical Connector

Band

1021—uncooled EDFA

1021T—2in1 EDFA

1021C—Cooled EDFA

O—Single Channel

W—Mult-Channel

B—Booster

L—Line

P—PreAmp

FC—FC/PC

FA—FC/APC

SC—FC/PC

SA—FC/PC

LC—FC/PC

LA—FC/PC

Other custom

C—C-Band

L—L-Band

Other custom
