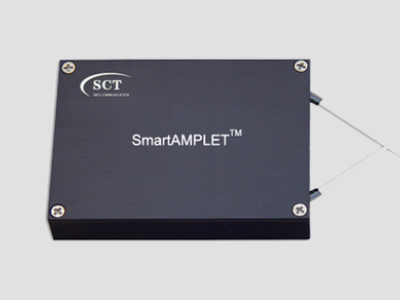

1021 MSA Size ASE Source

Model Number：
Views：195
：Click the picture to enlarge display

Overview
Specifications
Online Inquiry

Broadband source (BBS) is a custom configuration based onouramplification products. It is to provide a high power amplified spontaneous emission (ASE) source. Compared to the1021gain compensator, the BBS has a terminated input port and the optical path is re-optimized in order to provide a strong ASE light.

Optical performance can be optimized for different applications with or without gain flattening filters.

With integrated microprocessor and electronics, automatic control is available for constant output.

DOWNLOAD:1021 MSA Size ASE Source.pdf

Contact Us

E-mail:sales@safeop.com.cn

SZ Add.: Building C, No.59,Tianyang Second Road,Datianyang Industrial Zone,Songgang Street,Bao'an District,Shenzhen.
QY Add.: 5F, Building A1, Huanan 863 Technology Innovation Park, 6 Chuangye First Road, Qingyuan High-tech Development Zone, Guangdong Province, China

Parameter		Min.	Typ.	Max.	Unit
Wavelength Range(Custom)	C-Band	1527		1567	nm
Wavelength Range(Custom)	L-Band	1570		1607	nm
Output Power (w/o flattening filter)		15		20	dBm
Output Spectrum Flatness （Flatness type）				2	dB
Optical Return Loss (at Input and Output Ports)		40			dB
Signal Detection Accuracy				±0.3	dB
Power Supply Voltage （Option）		3.13	3.3	3.47	Volt
Power Supply Voltage （Option）		4.75	5	5.25	Volt
Electrical Connector		30 PIN (ZLTMM-115-73-S-D)
Dimensions (H x W x D)		90 x 70 x 15 (mm)
Heatsink(Option)		90 x 70 x 4.5 (mm)
